Bose Professional Surface-Mount Pan and Tilt Bracket for AMU, DesignMax and FreeSpace
Bose Professional Surface-Mount Pan and Tilt Bracket for AMU, DesignMax and FreeSpace

Bose Professional Surface-Mount Pan and Tilt Bracket for AMU, DesignMax and FreeSpace

$149.00

BOSACC08896870200

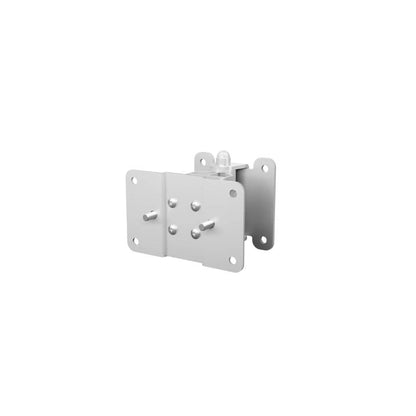

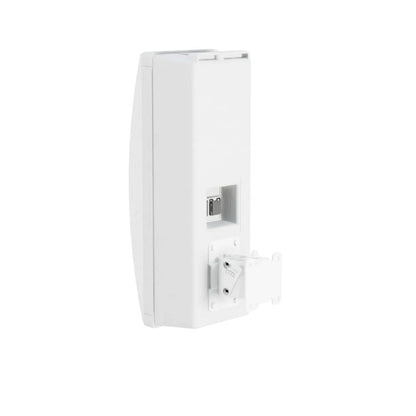

A surface-mount pan-and-tilt bracket that enables adjustment for both pitch and yaw, suitable for mounting either horizontally or vertically. The bracket is designed to fit the 4 M8 threaded inserts on the rear panel of the following models: DesignMax DM3SE, DM5SE, DM6SE, and DM8SE; FreeSpace FS2SE and FS4SE; 402 Series V; AMM108; AMU105, AMU108, AMU206, and AMU208.

FEATURES

Applications

Designed for a wide range of applications, including:

  • Indoor or outdoor use

SPECS

Technical Specification

PHYSICAL
  • Colors
  • Black, white
  • Product Dimensions (H×W×D)
  • 6.0 in x 4.4 in x 4.4 in (152 mm x 111 mm x 112mm)
  • Net Weight
  • 2.45 lbs (1.11 kg)

Product codes

  • BI-PIVOT BRACKET,BLK
  • 889687-0100
  • BI-PIVOT BRACKET,WHT
  • 889687-0200

Included in Packaging

  • (1) installation guide
  • (1) Surface-Mount Pan and Tilt Bracket
  • mounting screws & washers
