Aperture height 82 – 87 cm
Dimensions H/W/D 81.8 / 59.7 / 57.7 cm
Maximum number of 0.75 l Bordeaux bottles 34
Temperature zones 2
Individual temperature zones 2
Energy efficiency class G
Door assembly Flush-mounted
Connectable (SmartDevice-capable) —
Digital temperature display
The precision electronic control system is equipped with a digital temperature display, and provides information on the set values. The door and temperature alarm alerts the user visually and acoustically to any irregularities, e.g. a door that has been left open. The child lock prevents any inadvertent changes to the control panel.
LED lighting
The innovative LED lighting guarantees the even illumination of the interior without UV exposure. Since minimal heat is generated by the LEDs, wines can be presented bathed in light over a prolonged period of time.
Controllable temperature range
Whether it’s red wine or white, it can only mature properly if it’s kept at the ideal temperature. This can be set to the exact degree using the precise electronic control system and state-of-the-art air conditioning technology, and kept constant however much the ambient temperature varies.
Activated charcoal filter
Environmental odours can affect wines stored for longer periods.In the wine cabinets, perfect air quality is ensured through an easily-replaceable FreshAir activated charcoal filter.
Low-vibration storage
Even slight vibrations can disturb the wine maturing process and prevent the tannins from settling. Specially developed, exceptionally low-vibration compressors in all the wine cabinets mean that the wine is optimally stored.
Ideal humidity
Maintaining the proper humidity is an important aspect for the storage of wines. In this way, corks remain supple and do not dry out. Wine should be stored in a horizontal position to keep the corks moist from the inside. With over 50 % air humidity, wine cabinets guarantee the perfect conditions. The air humidity can be controlled as required in the wine storage cabinets by pressing the ventilation button.
Insulated glass door
Wine bottles are in most cases tinted because UV light has a damaging effect on wine maturation. However, the bottles alone are insufficient protection.In order to minimise the exposure to radiation, Liebherr wine cabinets feature special UV-resistant glass. In this way, stocks of wine can be protected and simultaneously stylishly showcased.
| Model type |
Built-under multi-temperature wine cabinet |
| GTIN |
9005382235270 |
| Voltage |
220-240 V ~ |
| Frequency |
50 Hz |
| Connection rating |
1.5 A |
| Energy efficiency class |
G |
| Energy consumption per year |
146 kWh/a |
| Climate class |
SN-ST |
| Noise level |
35 dB |
| Refrigerant |
R 600a |
| Aperture height |
82 – 87 cm |
| Dimensions H/W/D |
81.8 / 59.7 / 57.7 cm |
| Height/width/depth (with packaging) |
871.0 / 655.0 / 692.0 mm |

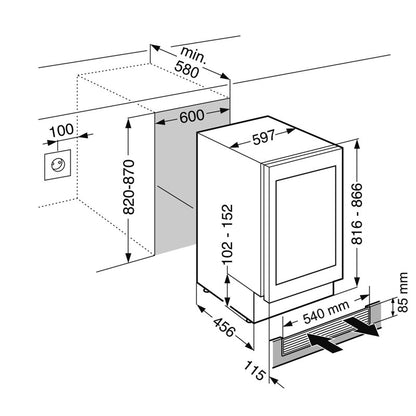

| Aperture dimensions height/width/depth |
82 - 87 / 60 / 58.0 cm |
| Weight (without packaging) |
48.00 kg |
| Weight (with packaging) |
52.00 kg |
| Control |
LC-display |
| Control unit |
Touch |
| Temperature display |
Wine compartment |
| Malfunction: Warning signal |
optical and acoustical |
| Door open: Warning signal, wine storage compartment |
audible |
| Child proofing |
✔ |
| Connectable (SmartDevice-capable) |
— |
| Forced air cooling |
✔ |
| Maximum number of 0.75 l Bordeaux bottles
|
34 |
| Lighting |
LED light |
| dimmable |
✔ |
| permanently activated |
✔ |
| Number of storage shelves |
5 |
| of which can be pulled out on telescopic rails |
3 |
| of which wooden folding shelves |
0 |
| Storage shelf material, wine storage compartment |
Wooden pull-out shelf |
| Activated charcoal filter |
✔ |
| Door assembly |
Flush-mounted |
| Door hinges |
Right reversible |
| Height-adjustable feet |
4 |
| Total volume |
94 l |
| Volume, refrigerator compartments |
94 l |
