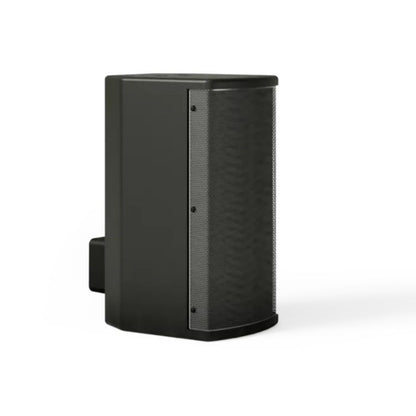

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. The AMU105 is an ultra-compact ArenaMatch Utility model for outdoor applications that require excellent audio from an unobtrusive loudspeaker. It provides wide, even coverage with a 100° × 100° constant-directivity high-frequency horn, 100 Hz – 16 kHz frequency response, 118 dB peak SPL, and supports the lowest vocal ranges with a Bose Professional LF5 5.25-inch woofer.
-
Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters
-
IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection
-
Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass
-
Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware
-
Compatible accessories include: Surface-Mount Pan-and-Tilt Bracket, Single-Point Suspension Bracket with multi-angle attachment points, and External Pole Adapter for portable use
-
Compact cabinet construction with rust-resistant suspension points
-
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
-
Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
-
AMU is a stocked product with no custom order or surcharge
-
Available in black or white finish to match the design of your project
Applications
Designed for a wide range of applications, including:
- Bars, high-energy restaurants
- Fitness centers
- Auditoriums
- Medium/small places of worship
- Gathering/common areas with live performances
- Indoor entertainment, sports and activity centers
- Multipurpose halls
- Outdoor dining and bar areas
- Hospitality/lodging
- Concourses
- Public walkways
- Outdoor pool and common areas
- Theme parks
- Stadia
Technical Specification
COMPLIANCE
- Safety Agency Ratings
- EN 54-24 Certified: EN 54-24: 2008, Loudspeaker for Voice Alarm Systems for Fire Detection and Fire Alarm Systems for Buildings
PHYSICAL
- Enclosure Material
- Exterior-grade plywood
- Environmental
- Indoor or outdoor. IP55-rated for direct exposure outdoor ratings
- Grille
- 3 layers (perforated stainless steel, acoustic foam, stainless-steel mesh), powder-coated finish
- Ingress Protection
- IP55 per EN60529; IP33C per EN 54-24
- Suspension/Mounting
- 2 × M8 threaded inserts for U-bracket, 2 × M8 threaded inserts on rear (75 mm, 2-bolt pattern)
- Product Dimensions (H×W×D)
- 6.0 in × 12.0 in × 9.0 in (152 mm × 304 mm × 229 mm), loudspeaker with input cover
- Net Weight
- 14.4 lb (6.5 kg), loudspeaker / 16.5 lb (7.5 kg), loudspeaker with U-bracket
- Shipping Weight
- 21.0 lb (9.5 kg)
PERFORMANCE
- Frequency Range (-10 dB)
- 90 Hz – 18,000 Hz
- Coverage, Horizontal
- 100°
- Calculated Maximum SPL @ 1 m
- 116 dB (free field), 118 dB (wall/ceiling)
- Power Handling, long-term continuous
- 100 W
- Power Handling, Peak
- 400 W
- Sensitivity (SPL/1 W at 1 m)
- 90 dB (free field), 92 dB (wall/celling)
- Transformer Taps, 100V
- 10, 20, 40, 80 W
- Transformer Taps, 70V
- 5 W, 10 W, 20 W, 40 W, 80 W
TRANSDUCERS
- Crossover
- 2.0 kHz, passive
- High-Frequency
- 1 × Bose Professional EMB2S extended high-frequency compression driver, 2 in (51 mm) voice coil
- Low-Frequency
- 1 × Bose Professional LF5 high-excursion 5.25 in (133 mm) woofer, 1.5 in (38 mm) voice coil
Product codes
- 811433-0110
- ArenaMatch Utility AMU105, black
- 811433-0210
- ArenaMatch Utility AMU105, white
Included in Packaging
- (1) ArenaMatch Utility AMU105 loudspeaker
- (1) U-bracket
- (4) M8 screws
- (4) M4 screws
- (1) input cover
- (2) rubber washers
- (1) T3 square drive
- (1) installation guide
