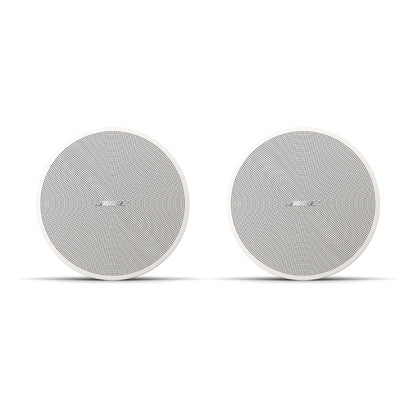

Bose Professional DesignMax DM2C-LP in-ceiling loudspeaker White ( 1 Pair )
Bose Professional DesignMax DM2C-LP in-ceiling loudspeaker White ( 1 Pair )

Bose Professional DesignMax DM2C-LP in-ceiling loudspeaker White ( 1 Pair )

$379.00

BOSSPK08150110210

A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.

Key Features of Bose DesignMax Loudspeakers

Flexible Design for Any Space

  • Choose from 12 mix-and-match models — from compact 2-inch low-profile loudspeakers to powerful 8-inch high-SPL compression-driver models.

  • Includes outdoor-rated options to suit both indoor and exterior installations.

Exceptional Sound Quality

  • Delivers impressive audio out of the box with custom-designed drivers — no DSP or EQ required.

  • For enhanced performance, pair with select Bose Professional DSPs and amplifiers to activate loudspeaker EQ and SmartBass® processing, ensuring consistent response at any listening level.

Elegant Aesthetic Integration

  • Designed to blend seamlessly into any environment with sleek, minimum-bezel grilles, available in black or white.

  • Features removable Bose logos for a cleaner architectural appearance.

Fast and Secure Installation

  • Equipped with the patented QuickHold™ mounting system, reducing installation time and minimizing the risk of product damage or installer strain.

Installer-Friendly Components

  • All models include industry-standard Euroblock connectors.

  • In-ceiling versions come with plenum-rated backcans, tile bridges, and front-access audio wiring for faster installation and easier maintenance.

Optimized for Tight Spaces

    • In-ceiling models feature a low-profile backcan, just 10 cm (3.9 inches) in height — ideal for confined ceiling spaces.

Technical Specifications – Single Loudspeaker Performance
Frequency Response (-3 dB) 95 – 18,000 Hz
Frequency Range (-10 dB) 85 – 19,000 Hz
Nominal Coverage Angle (1–4 kHz) 150° conical
Nominal Coverage Angle (1–10 kHz) 140° conical
Power Handling (Continuous) 20 W
Power Handling (Peak) 80 W
Power Handling (AES Extended Lifecycle) 16 W (continuous), 64 W (peak)
Sensitivity (1W @ 1 m) 84 dB
Max SPL @ 1 m 97 dB
Max SPL @ 1 m (Peak) 103 dB
Loudspeaker EQ Not Required; Bose EQ voicing & SmartBass available
High-Pass Protection 85 Hz, 24 dB/octave filter recommended
Transformer Taps 70V: 1.2, 2.3, 4.5, 9 W, bypass
100V: 2.3, 4.5, 9 W, bypass
Transducers
Full-Range Driver 1 × 2.25-inch woofer (57 mm)
Nominal Impedance 16 ohms (transformer bypass)

Physical Specifications
Enclosure Material Engineered plastics front baffle with integrated steel formed backcan
Grille Magnetically attached perforated steel, powder-coated finish, paintable, with safety-tether
Logo Rotatable, removable
Color Black: RAL 9005
White: RAL 9003
Paintable
Environmental Indoor only
Safety Agency Compliance UL-1480A, S5591 / UL Listed
UL2043 (plenum-space compliant)
NFPA70 & NFPA90-A
CE compliant
Operating Temperature Range 0 °C to 50 °C (32 °F to 122 °F)
Connectors Euroblock 6-pin connector with loop-through, front-baffle mounted (accepts 18–14 AWG wire)
Wire / Conduit Entry Top and side knockouts for 9.5 mm (3/8 in) conduit
Mounting System Two QuickHold spring-loaded arms + two safety cable tabs
Grille Dimensions (Diameter × Depth) 198 × 110 mm (7.8 × 4.3 in)
Backcan Dimensions (Diameter × Depth) 155 × 99 mm (6.1 × 3.9 in), low-profile
Cutout Size (Diameter) 165 mm (6.5 in)
Maximum Ceiling Thickness 39 mm (1.5 in)
Net Weight (Loudspeaker + Grille) 1.6 kg (3.6 lb)
Net Weight (Tile Bridge) 0.7 kg (1.6 lb)
Shipping Weight (Pair) 5.9 kg (13.2 lb)
Included Accessories Adjustable tile-bridge, installation template
Optional Accessories Rough-in kit (6-pack for new construction)
Product Codes
Black 815011-0110 – DESIGNMAX DM2C-LP PAIR BLK
White 815011-0210 – DESIGNMAX DM2C-LP PAIR WHT
